| 產品規格及說明 | |
|---|---|
| 設備品牌：帝龍 | 設備型號：4021-30 |
| 訂購價格：電話/面議 | 交貨日期：3~30/工作日 |
| 產地:東莞 | 是否進口:否 |
| 加工定制:是 | 功率密度:100 |
| 總功率:2.1KW | 重量:80（Kg） |
| 外形尺寸:長1500*寬520*高1240MM | |
| 用途:UV膠水、UV油漆、UV油墨光固化 | |
| 產品標簽：小型打樣uv機,uv固化機,小型uv機,打樣uv機 | |
| 咨詢熱線：13715339029 | 售后服務：13715339029 |
| 技術咨詢：13715339029 |  QQ咨詢：260200500 |

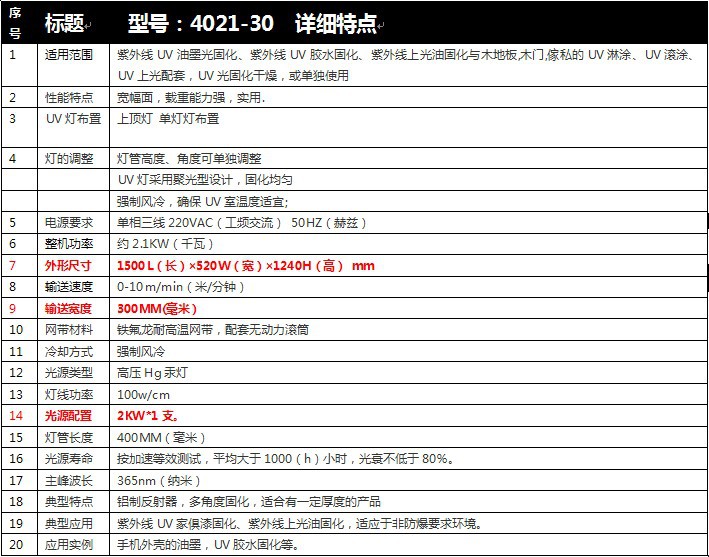

equipment model:4012-30
Exergy applicable scope: ultraviolet UV light curing, UV glue UV curing, UV curing varnish and wooden floor, wooden doors, furniture of UV coating, UV roll coating, UV coating, UV curing and drying, or used alone.
– performance characteristics: wide format, strong load-carrying ability, practical.
UV lamp: lamp lamp lamp;
UV lamp adjustment: each lamp height, angle individually adjust;
UV lamp is designed, and the curing is uniform;
Forced air cooling, to ensure that the UV room temperature is appropriate;
The replacement of UV lamp adopts closed door device, which is simple and easy to maintain.
– Technical parameters:
Power requirements: single phase three line 220VAC (power frequency AC) 50HZ (Hz)
Power: about 2.2KW (kw)
Dimensions: 1330 L (long) x 520W (wide) x mm (high) 1480H
Conveyor speed: m/min 0-30 (M / min)
Conveyor width: 300mm (mm)
Belt material: Teflon high-temperature net belt, supporting power roller
Cooling method: forced air cooling
Light source: high pressure mercury lamp type Hg
Lamp power: 80w/cm
Source configuration: *2 1KW.
Tube length: 400MM
The life of the light source: according to the equivalent test, the average more than 1000 hours (H), attenuation of not less than 80%.
Peak wavelength: 365nm (nm)
Typical features: aluminum reflector, multi angle curing, suitable for a certain thickness of the product
Typical application: UV UV furniture paint curing, UV curing, adapted to the non explosion proof requirements.
– Application: mobile phone shell UV ink, glue curing etc..
