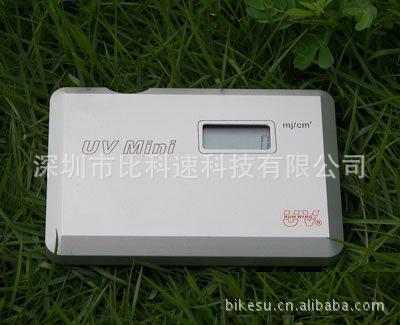

UV MINI紫外線能量計 UV-INT250

比較常見的名稱：紫外線能量計，紫外線焦耳計，能量測試儀

• UV MINI迷你型能量計的突出優點：
  ■ 除了具備傳統圓盤式紫外線能量計的基本功能外，其測量精度更高、穩定性更強。
  ■ UV MINI能量計是新款專利產品，其精巧、美觀、輕便的外觀設計，用戶攜帶更為方便；
  ■ 由于采用高精密、微型進口元器件配置，儀器的整體外觀尺寸非常小，對于所檢測對象而言,尺寸要求更低，檢測時靈活性更大，例如：大型的UV生產線、多面立體分布的UV光源系統、精密、小巧的低功率光源均適用；
  ■ 原產地:香港。
• 用途介紹：
  ■ 用于測量不同光源在一定時間內的照射能量值，也就通常所講的光績量；
  ■ 隨著用戶對紫外固化要求的不斷提高，UV能量計已成為生產過程中極為重要的固化質量監測儀器，是能良好地控制和實現產品固化質量一致性的必備工具；
  ■ 測量的光譜范圍為250-410nm(納米)，最佳感應紫外線波長為365nm(納米)；
• 使用方法：
  ■ 將能量計上方的開關調至打開位置即“ON”位置，此時，顯示屏上將顯示數字“0” mj/cm2（毫焦耳/平方厘米）。
  ■ 準備測量，將能量計的背面面向紫外線UV光源，以保證測量的有效性和準確性，感光窗有清楚的標識。
  ■  當儀器在光源照射一定時間之后，已記錄所感測到的UV紫外光能量，此時，可以從儀器正面的顯示屏上讀取能量值，能量值的對應單位是：mj/cm2（毫焦耳/平方厘米）。

■ 每一次，在進行一次新的測量工作時，依據需要將儀器關閉，然后再次開啟。顯示屏上將重新調至“0” mj/cm2（毫焦耳/平方厘米）。接著可依照上述步驟繼續操作。
■ 每一次使用時，請將儀器的開關調至打開狀態即“ON”位置，液晶顯示屏上顯示的讀數為“0”mj/cm2（毫焦耳/平方厘米）,如果不是想獲取重復測試的累計能量值，請每一次測量前，將其讀數歸零。
■ 如果您的工藝特別需要，也可以反復地進行測量，每一次測量后的讀數，不需要歸零處理，那么，儀器上最后一次顯示的讀數將是多次反復測量的累計值。
當完成測量時，需將開關調至“OFF”位置，以便及時關閉儀器，正確的操作將有效保證儀器的電池使用壽命。

• 注意事項：
  ■ 請避免用力頻繁搖晃儀器或摔壞儀器；
  ■  每一次測量完成，請及時將儀器關閉，并放回包裝盒內保管；
  ■  測量時請避免將儀器正面的液晶顯示屏直接置于強光或高熱量環境中。
  ■  非專業人士，不宜自己打開儀器進行調?；蚱茐模@樣將影響到儀器的檢測效果和準確性
• 技術數據:
  光譜范圍：     UV 250-410nm （納米）
  光強范圍：     不限
  量程范圍：     0-999,999 mJ/cm2（毫焦耳/平方厘米）
  采用電源：     AAA電池
  電池功耗：     100μA
  電池壽命：     正常操作條件下使用一年
  外形尺寸：      93L* 63W*13Hmm(毫米)
  重    量：       150g(克)
  環境溫度：     0至80℃(攝氏度)
  承受溫度：     110℃(攝氏度)條件下持續照射不超過10s(秒)
  測量精度：     ±2%
  校驗周期：     由于所有的電子元件，如：傳感器，通常都會隨使用時間的延長而老化，為準確地保證測量精度和效果，建議校驗的周期為一年。
  保修期限：     由購買日起一年內保修，人為損壞或客觀因素導致的損壞除外。

 UV MINI METER

n  Excellence

■ In addition to the basic function that a dish type integrator (UV Integrator 140) has, its precision is higher, and its stability is stronger.

■ It is the new patent product for RUNWING.It appear ingenious, beautiful and convenient, so it is more convenient to take.

■ Because of adopting high precision and miniature import, the whole external appearance size is very small and it can be applied for many UV system such as Large production line of UV system, multidimensional UV system and precision, nice and low-power UV system.

■ Origin: HONGKONG.

n   Introduction

■ It is used for measuring the energy of different light sources within a certain time, which isalso as usually called the light energy.

■ With the advancement of the curing requirements of customer, UV meter has more and more become the important quality monitor. It has also become the essential tool of controling and realizing curing quality consistency.

■ Spectral range is UV250-410 nm and the main length is 365nm.

n   Instruction for use

■ Switch on the UV-Integrator. The display on the LCD will show “0”mj/cm2.

■ Place the UV-Integrator with the front facing the conveyor belt. The sensor is on the back of the UV-Integrator. The back

     plate of the UV-Integrator serves as the heat shield.

■ After the UV-Integrator has passed through the conveyor, take the UV-integrator from the conveyor belt in order to read the measuring result. The measuring results are shown as: mJ/cm2.

■ Prior to a new measuring sequence, it is necessary to switch “off” and then “on” again.

 This will reset the display to “0”.

     Continue as described in Step 2.

■ After using the instrument, please put it into the packing box and prevent it broken.

■ You can measure it again and again if you need it .

n   Attention:

■ Please avoid shaking the UV-integrator or break it.

■ After using it every time, please close the instrument in time and put it into the packing box.

■ Do not put the LCD on the instrument out the high-light or high- energy area.

■ Don’t open the instrument to calibrate or destroy it if you are not professional. Otherwise, the measuring effect and precision of the instrument will be affected.

■ Technical Data:

Spectral range:  UV 250-410 nm

Measuring range: Unlimited

Display range: 0~ 999,999mJ/cm2

Power source: AAA Battery

Power consumption: 100μA

Batteryservice life: 1 year

Dimensions: 93L*63W*13H (mm)

Weight: Approx：150 kg

Temperature range: 0~ 80°Celcius

Maximal Temperature: While on the conveyor belt, The Integrator can withstand max. 110Celcius for up to 10 seconds

Measuring Precision:+2%

Calibration:In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after change of battery.

Warranty: 1 year from the date of purchase. But the battery, and other bad-easy parts and ruined instrument by man are not included
