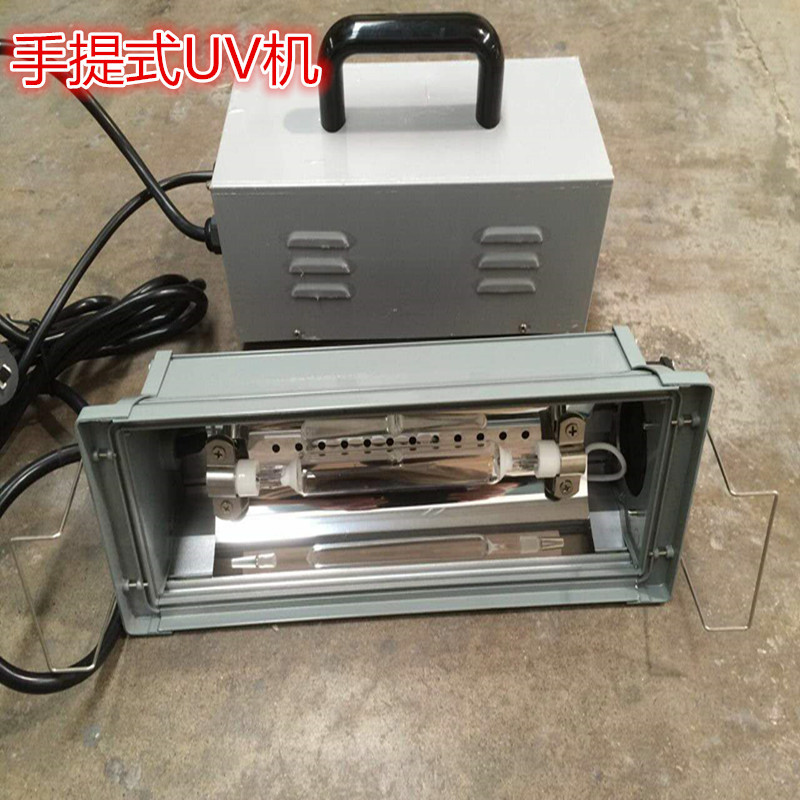

一、設備名稱：手提箱式便攜UV光固機

二、本機應用范圍：

  1、異型UV固化、模型制作、工藝品成型等。
  2、適用于UV膠水、實驗室及臨時簡單施工維修。

  3、適用于電子線路板、木材、石材、紙張、玻璃、光盤、PVC等。

  4、適用于汽車大燈翻新、汽車快速修補。

三、本機特點：

 1、本機外形美觀、體積小重量輕、節省空間、適用面廣質量可靠、使用安全、操作方便。

 2、本機可移動工作，隨意性強，機動靈活，缺點是效率比較低。

 3、進口光源反射鏡，最大折射UV光，加強干燥固化效果。

 4、先進的散熱系統，確保工件不受溫度影響，延長燈管的使用壽命。

四、主要技術參數

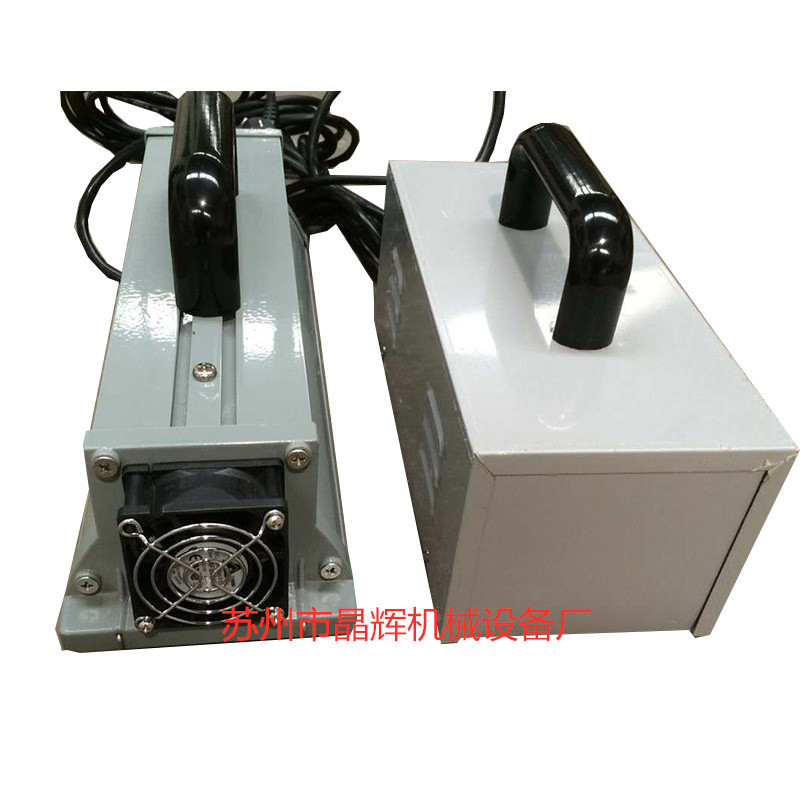

本光源由電源控制箱及燈箱兩部分組成。使用時，先將電源控制箱上的插頭插進外接電源插座內，用220V電源供電，供電電路電壓不低于220V。

I. Name of equipment: portable portable UV fixing machine with suitcase

2. The scope of application of this machine:

1. Special-shaped UV curing, model making, handicraft shaping, etc.

2. It is suitable for UV glue, laboratory and temporary simple construction and maintenance.

3. Applicable to electronic circuit board, wood, stone, paper, glass, CD, PVC, etc.

4. Suitable for automobile headlamp renovation and rapid repair.

Third, the characteristics of this machine:

1. The machine has beautiful appearance, small size, light weight, space saving, wide application, reliable quality, safe use and convenient operation.

2. This machine can work movably, with strong randomness and flexibility. The disadvantage is low efficiency.

3. Imported light source reflector, maximum refraction of UV light, enhance the effect of drying and curing.

4. Advanced heat dissipation system ensures that the workpiece is not affected by temperature and prolongs the service life of the lamp.

IV. Main Technical Parameters

The light source consists of a power control box and a light box. When in use, the plug on the power control box is inserted into the external power socket first, and the power supply circuit is supplied with 220V power supply, and the voltage of the power supply circuit is no less than 220V.

Power parameter

Voltage 220V

UV lamp power：400W 1KW 2KW 3KW

Lamp tube length：  120 mm 230 mm 400 mm 500 mm

Luminous area of lamp：80 mm 180 mm 300 mm 400 mm

wavelength：365nm

Lamp Lifetime：800 hours

External size

Electric control panel：460L*160W*200H

Light boX：500L*160W*200H

weight Power supply weight     15KG

Lamp weight   7KG
